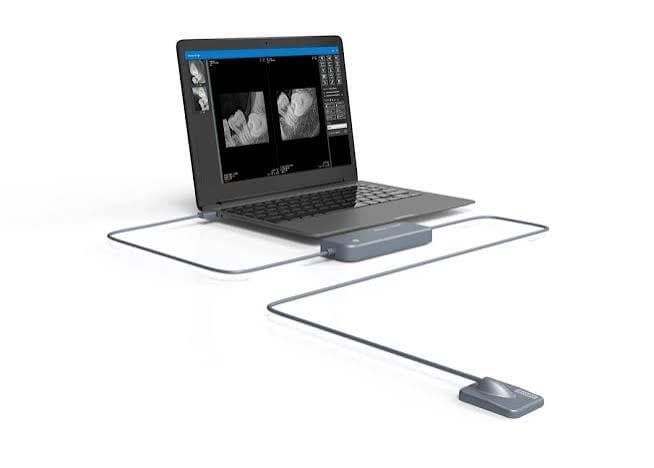

Xpectvision Photon-Counting Intraoral Dental X-Ray Sensor – Size 1

The Xpectvision Size 1 Photon-Counting Intraoral Dental X-Ray Sensor is designed for digital intraoral dental imaging. It uses photon-counting direct-imaging technology and silicon-based chips to support stable image acquisition and clinical image quality.

The sensor features a 20 × 30 mm imaging area, a compact 5 mm thickness, and 16-bit grayscale imaging with 65,536 gray levels. Its IP67-rated enclosure provides water resistance, and the broad dynamic range allows brightness and contrast adjustments for different clinical requirements.

Key Features:

• Brand: Xpectvision

• Sensor size: Size 1

• Imaging area: 20 × 30 mm²

• Mechanical dimensions: 26.2 × 38.5 mm²

• Thickness: 5 mm

• Detector technology: Photon-counting direct imaging

• Grayscale: 16-bit (65,536 gray levels)

• Water resistance: IP67

• Image formats: BMP, DIR, DCM, JPEG, PNG and TIFF

• Warranty: 2 years, as stated in the catalogue

This intraoral sensor is designed for dental practices requiring a compact digital dental X-ray imaging solution.
