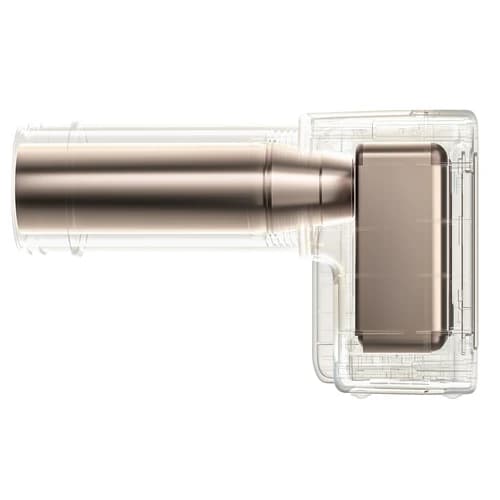

Woodpecker RTA Smart Ray Portable DC Dental X-Ray Machine

The Woodpecker RTA Smart Ray Portable DC X-Ray Machine is a compact dental imaging device designed to support intraoral radiography in professional dental settings. It combines a high-frequency X-ray generator, a 0.4 mm focal spot, a fixed 70 kV tube voltage, and a 2 mA tube current to produce dental images for diagnostic assessment and treatment planning.

Featuring a 3.5-inch IPS capacitive touchscreen, real-time grip-angle display, wireless RF connection technology, and a rechargeable lithium battery, the RTA Smart Ray is designed for convenient handling and efficient operation. Its portable construction and camera-inspired design make it suitable for dental practices requiring a mobile intraoral imaging solution.

Key Features

• Portable DC X-ray system: Compact design for convenient handling in dental settings.

• Japan Canon high-frequency X-ray tube: Designed to provide consistent X-ray output and imaging performance.

• 70 kV tube voltage: Fixed tube voltage with a stated tolerance of ±10%.

• 2 mA tube current: Fixed output with a stated tolerance of ±20%.

• 0.4 mm focal spot: Supports focused X-ray production.

• 3.5-inch IPS touchscreen: Provides an intuitive interface for operating the device.

• Real-time grip-angle display: Displays the device's grip angle to assist positioning.

• Rechargeable lithium battery: Three 18650 battery cells with a combined stated specification of 10.8 V, 2500 mAh and 27 Wh.

• Fast charging: 48 W charger with a stated full charging time of approximately one hour.

• Wireless RF connection: Supports wireless communication for convenient operation.

• Lead shielding: The supplied description specifies 99.9% pure lead shielding in the oil tank and beam limiter.

• 360° positioning capability: Supports positioning for different tooth locations in vertical and horizontal orientations.

• Camera-inspired ergonomic design: Anti-slip texture and camera-style shutter exposure button.
