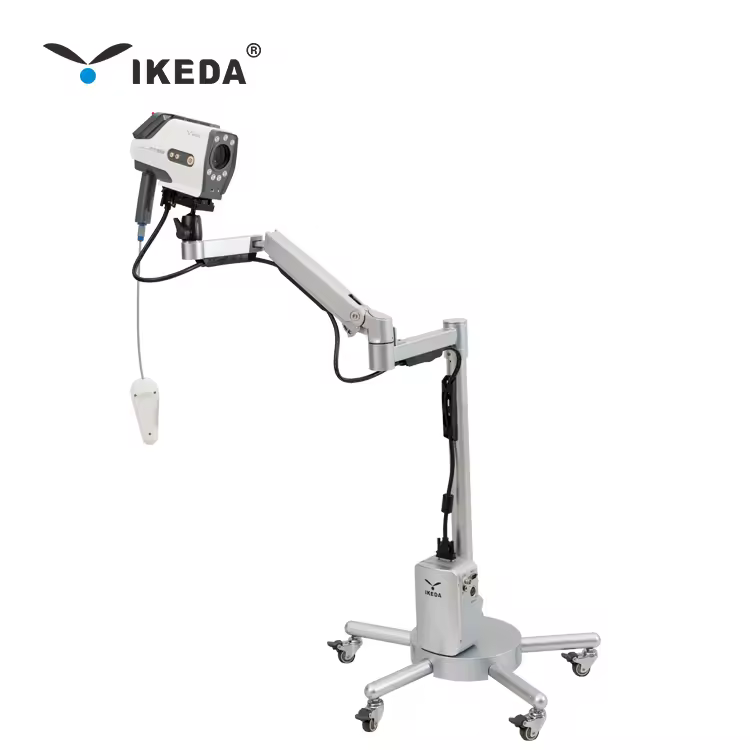

The IKEDA Digital Colposcope Camera is designed for detailed visual examination during gynecological procedures. It features a 1/2.8-inch Sony CCD camera with approximately 2.1 million pixels and supports 1920 × 1080 image resolution for clear video output.

The colposcope provides 20X optical magnification and 12X digital magnification, with automatic or manual focusing options. Its imported high-brightness white LED light source provides illumination during examination, while automatic and manual white balance and electronic color filtering support image adjustment.

The system also includes a 3.5-inch LCD screen, DVI output, CVBS/Y/C video output, foot-switch control, wired remote control, and image-freeze functionality. The working/object distance is 30–50 cm, making it suitable for clinical examination environments.

Key Specifications

Brand: IKEDA
Camera: 1/2.8" Sony CCD
Total Pixels: 2.1 million
Image Resolution: 1920 × 1080
Scanning: Progressive scanning
Frame Rate: 30p at 1920 × 1080
Light Source: High-brightness white LED
SNR: More than 50 dB
Magnification: 20X optical, 12X digital
Object Distance: 30–50 cm
Focus: Automatic, manual, or software interface
White Balance: Automatic and manual
Video Output: CVBS 1.0 Vp-p (75), Y/C
Horizontal Resolution: More than 1080 lines
LCD Screen: 3.5-inch
Image Freeze: Foot button, software, and wired remote control

Ikeda

IKEDA Digital Colposcope Camera with 20X Optical Magnification
