Description

Sony UP-X898MD Medical Printer – Hybrid Thermal B/W A6 Printer for Ultrasound, C-Arm & Endoscopy | UAE

The Sony UP-X898MD is a high-performance hybrid medical printer designed for ultrasound, C-arm, and echo-endoscopy systems, delivering sharp, high-quality A6 black-and-white prints in under two seconds.

This advanced thermal printer supports both analog video and digital USB inputs, making it compatible with a wide range of medical imaging equipment. Compact and lightweight, it easily fits into medical carts and workstations without sacrificing speed or image clarity.

With a 325 dpi resolution and 8-bit (256-level) grayscale reproduction, the UP-X898MD ensures near-photo-quality prints suitable for patient records, documentation, and referrals (not for diagnostic use).

It also allows direct image storage to a USB flash drive and can be made wireless with the optional UPA-WU10 Wireless Print System, offering maximum convenience in modern hospital environments.

Key Features

Hybrid Connectivity: Accepts both analog video and digital USB 2.0 signals.
High-Resolution Output: 325 dpi with 256 grayscale levels for detailed image printing.
Fast Printing: Prints high-quality A6 images in ~1.9 seconds (standard mode).
Compact & Lightweight: Space-saving design for easy integration in medical carts.
USB Image Storage: Save printed still images directly to a USB flash drive.
Wireless Ready: Compatible with Sony’s optional UPA-WU10 wireless printing module.
Dual Cutter System: New design allows flexible installation and smooth up/down cutting.

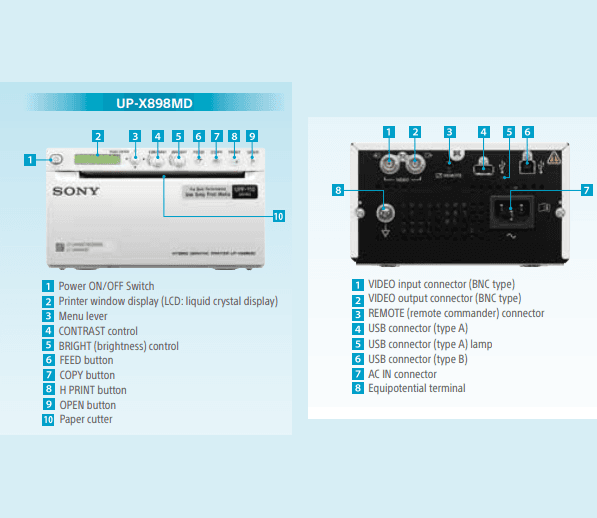

User-Friendly Interface: Enlarged LCD panel and joystick for intuitive operation.
Safe for Medical Use: Designed specifically for medical imaging systems (non-diagnostic).

Technical Specifications

Brand: Sony
Model: UP-X898MD (Model No. 33968)
Printing Technology: Thermal Monochrome
Resolution: 325 dpi, 8-bit grayscale (256 levels)
Print Speed: Approx. 1.9 seconds (A6 size)
Media Type: UPP-110HG / UPP-110HD / UPP-110S thermal print media
Interfaces: USB 2.0, Composite Video
Power Supply: 110–240 V AC, 50/60 Hz
Dimensions: 24.1 × 15.6 × 24.1 cm (D × W × H)
Weight: 0.5 kg
Colour: Black
Printer Output: Monochrome
Compatibility: Ultrasound, C-Arm, Echo-Endoscopy, and other medical imaging systems
