Description

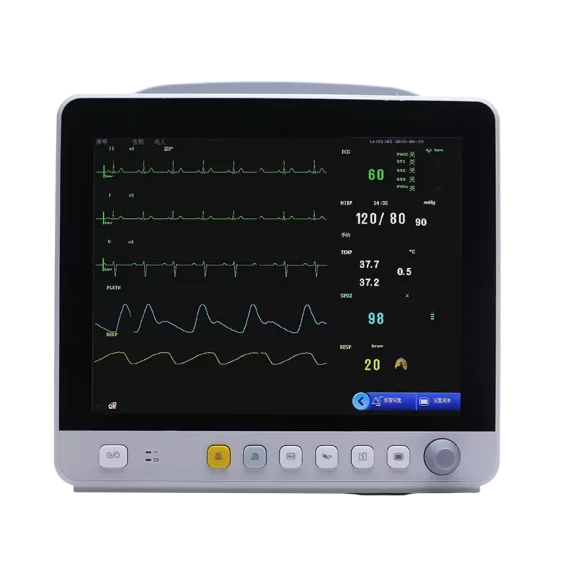

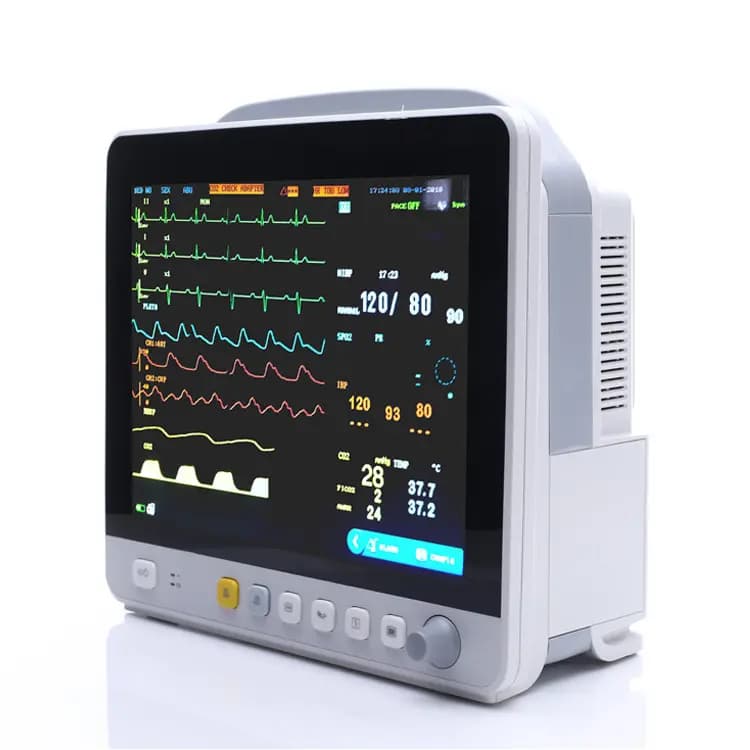

The Multi-Parameter Patient Monitor E12 is a high-performance medical monitoring system designed for accurate and continuous patient monitoring in hospitals, ICUs, emergency rooms, and clinics. Equipped with a 12.1-inch high-resolution TFT LCD display, the E12 provides clear real-time visualization of vital parameters, ensuring efficient clinical decision-making.
This advanced patient monitor supports multiple parameters including ECG, SpO2, NIBP, RESP, TEMP, and PR, with optional modules such as IBP and EtCO2 for extended monitoring capabilities. Its modular design allows easy upgrades, making it a flexible solution for evolving medical needs.
With a user-friendly interface, fast response system, and reliable alarm functions, the E12 ensures patient safety and monitoring accuracy. Designed for modern healthcare environments in the UAE, it offers durability, precision, and efficiency for healthcare professionals.
Key Features
- 12.1” high-resolution TFT LCD display
- Multi-parameter monitoring: ECG, SpO2, NIBP, RESP, TEMP, PR
- Optional modules: IBP, EtCO2
- Modular design for flexible upgrades
- Real-time waveform and data display
- Advanced alarm system for patient safety
- Built-in rechargeable lithium battery
- User-friendly interface with touch screen option
- High accuracy sensors and monitoring system
- Suitable for continuous patient monitoring
Technical specification
- Display: 12.1” TFT LCD (800 × 600)
- Parameters: ECG, SpO₂, NIBP, RESP, TEMP, PR
- Optional: IBP, EtCO₂, Touchscreen, WiFi
- ECG: 3/5 lead, HR 15–300 bpm
- SpO₂: 0–100%, ±2% accuracy
- NIBP: Oscillometric, Manual/Auto modes
- Temperature: Dual channel, 0–50°C
- Respiration: 0–150 breaths/min
- Battery: Rechargeable Li-ion (up to 4 hrs)
- Power Supply: AC 100–240V
- Storage: Trend data & alarm records
- Size: Approx. 305 × 162 × 290 mm
- Weight: ~4.5 kg
- Design: Modular plug-in system
- CE Certified
- Advanced alarm system
- Multi-patient support (Adult/Pediatric/Neonatal)
Applications
- Intensive Care Units (ICU)
- Emergency rooms
- Operation theatres
- Clinics and hospitals
- Patient monitoring during surgery
- Ambulance and transport monitoring
