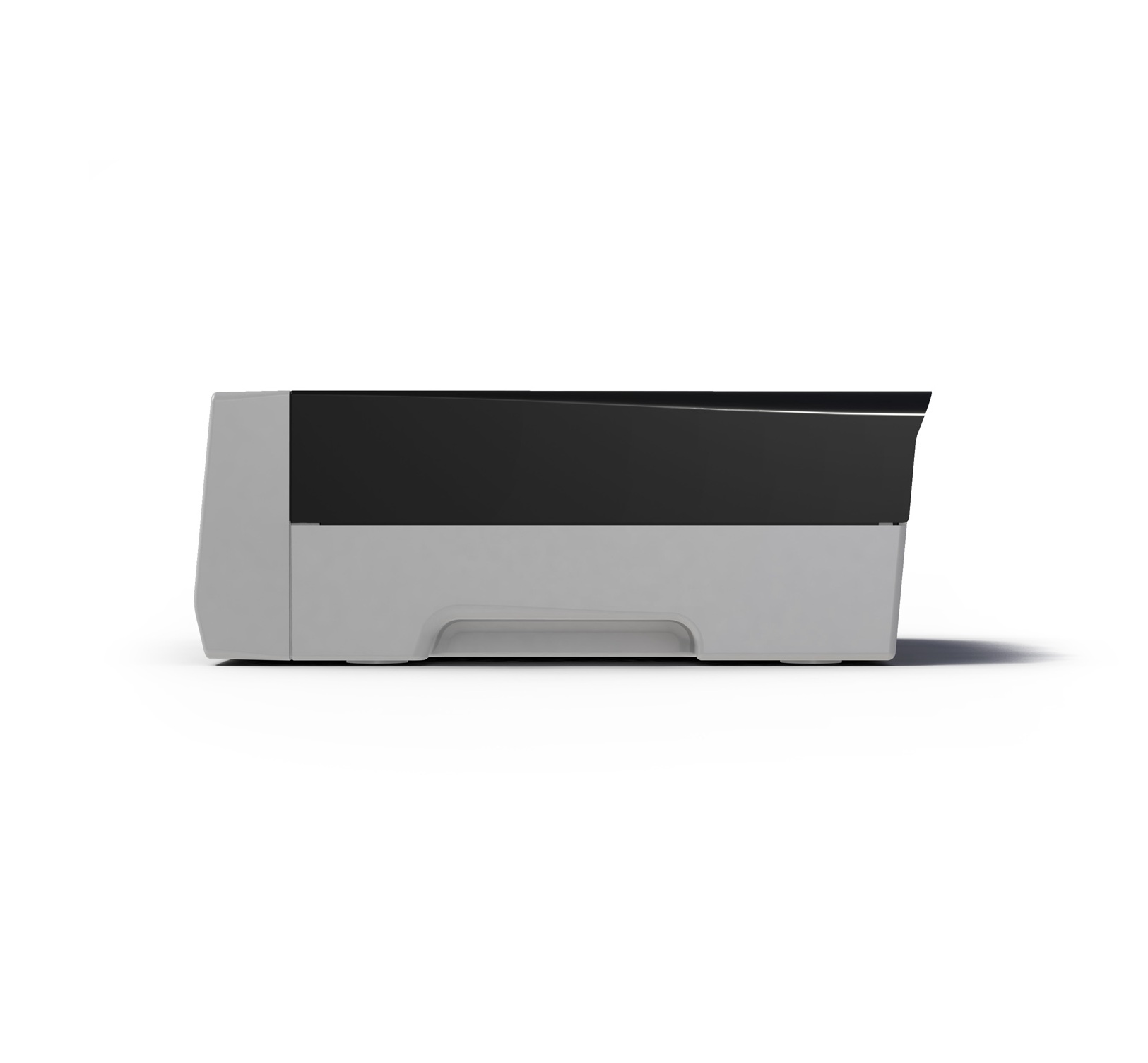

Electro Surgery Unit – Led Spa Surtron 80
SURTRON 80 allows a highly professional surgery thanks to the user-friendly and safety solutions normally used.
The connection of neutral electrode is constantly monitored. Safety control of patient/plate contact using split neutral electrode. The possibility to control by the handle the monopolar output functions as well as the delivery of output power, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.
The Surtron 80 Electrosurgical Unit is a high-frequency ESU designed for light to medium surgical procedures with maximum precision and safety. It supports multiple functions including pure CUT, BLEND, FORCED COAG, SOFT COAG, and BIPOLAR coagulation (with adapter).
A powerful microcontroller system ensures accurate power delivery, automatic monitoring, and reliable surgical performance. Its user-friendly controls and handle-operated power adjustment allow surgeons to focus completely on the surgical field without interruption.
FEATURES
Code 10100.101
Max output power CUT 80 W-250 Ω
Max output power BLEND 60 W-200 Ω
Max output power FORCED COAG 50W-150Ω
Max output power SOFT COAG 40 W-100 Ω
Max output power BIPOLAR 30 W-100 Ω
Working frequency 600 KHz
Patient circuit F
Selectable input voltage 115-230 Vac
Mains frequency 50-60 Hz
Electrical input power 230 VA
Size WxHxD 254x104x288 mm
Weight 5 Kgs
CONTROLS
Patient/Plate circuit monitoring
Output power monitoring
Self check control
SAFETY
EN60601-1
EN60601-1-2
EN60601-2-2
Electrical Class: I CF
MDD 93/42/EC Class: II b
