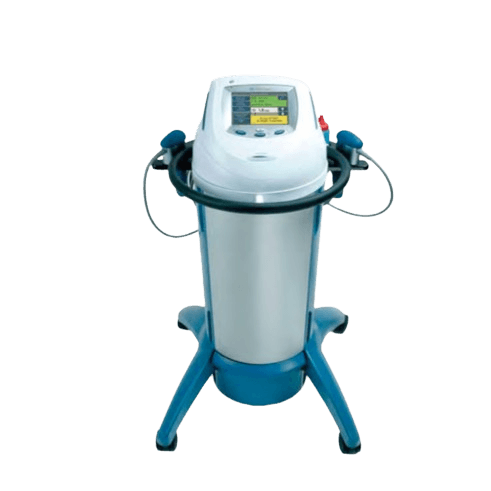

INTELECT RPW Shockwave Therapy Unit with D-ACTOR Applicator is a radial pressure wave therapy system designed for non-invasive treatment applications involving soft tissue and tendon-related conditions. The D-ACTOR applicator can be used with a variety of transmitters to generate shockwaves or a combination of shockwaves and vibrations. The system is designed for applications including myofascial trigger points, disorders of tendon insertions, activation and tightening of muscle and connective tissue, acupuncture, shockwave therapy, cellulite treatment (Stages I–III), elimination of lymphatic congestion, regulation of muscle tone and medical massage . Radial pressure wave therapy provides a non-invasive treatment approach for long-term insertion and soft tissue pathologies. According to the supplied product information, localized treatment is intended to enhance and reset the healing pattern while reducing pain and improving function. The stated physical effects include pain reduction, increased metabolism, revascularization and muscle tone recovery . The system provides adjustable compressed air output from 1.4 to 5 bar , with power increment settings of 2 bar . It operates at a pulse frequency of 0.5–21 Hz , with a pulse width of approximately 6–12 ms and a pressure vessel volume of 31 litres . Pulse amplitude is approximately 2 mm at 3 bar while idling without coupling . The standard accessory kit includes the D-ACTOR handpiece applicator, R15 15 mm ESWT transmitter, D20-S 20 mm D-ACTOR transmitter, projectiles, sealing set, guide tubes, cleaning brush, transmission gel, patient data card and user manual . Additional and optional transmitters/accessories include the D35 D-ACTOR 35 mm transmitter, F15 Focus-Lens 15 mm transmitter, DI15 Deep Impact 15 mm transmitter, C15 CERAMa-x ESWT 15 mm transmitter and V-ACTOR handpiece kit with V25 and V40 vibration transmitters . Key Specifications Compressed Air Output: 1.4–5 bar Power Increment Settings: 2 bar Power Indication: Maximum and average power Pulse Amplitude: Approx. 2 mm at 3 bar, idling without coupling Pulse Width: Approx. 6–12 ms Pulse Frequency: 0.5–21 Hz Pressure Vessel Volume: 31 L Ordering Code: CHA2074 Unit Voltage: 230 V Applicator: D-ACTOR handpiece Therapy: Radial Pressure Wave / Shockwave Therapy
