The CARDIO-TRACK Heavy-Duty Medical Treadmill is designed for clinical exercise testing, cardiology assessments, physiotherapy, and rehabilitation applications. Manufactured by Health & Fitness Products Company (HFPC), the CARDIO-TRACK treadmill range is built for demanding professional environments, with a focus on durability, comfort, and compatibility with medical stress-testing systems.

According to the supplied product brochure, the treadmill range supports direct computer interfacing through RS-232 and RS-485 interfaces, allowing integration with compatible stress-testing equipment. Its design features include a heavy-duty steel frame, a wide walking area, a thick walking belt, patient-support handrails, and an emergency stop switch.

The brochure lists three models: 900EXL, 900XL, and 594XL, with different motor ratings, speed ranges, incline capabilities, and patient weight capacities. Select the appropriate model according to your facility's clinical requirements and equipment compatibility

Technical Specifications

The following specifications are transcribed from the supplied CARDIO-TRACK brochure, page 2.

Cardiotrack TMT.pdf

Specification	900EXL	900XL	594XL
Motor	3 HP	2 HP	2 HP
Motor Type	AC continuous	AC continuous	AC continuous
Belt Speed	0–14.0 mph	0.5–12.5 mph	1.0–10.0 mph
Walking Area	580 × 1640 mm	500–1500 mm*	500–1455 mm*
Incline Range	25%	22% (optional 25%)	21%
Maximum User Capacity	210 kg	180 kg	150 kg
Power Supply	230 V, 50 Hz, 15 A	230 V, 50 Hz, 15 A	230 V, 50 Hz, 15 A
Operating Temperature	10–45°C	10–45°C	10–45°C
Humidity	15–95%	30–95%	30–95%
Machine Weight	195.5 kg	180 kg	145 kg
Floor Space	775 × 2150 mm	700 × 1970 mm	700 × 1940 mm

CARDIO-TRACK

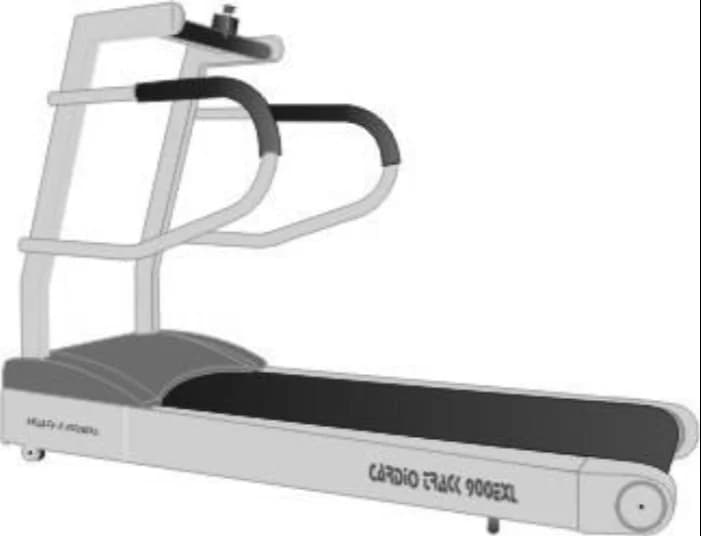

Heavy-Duty CARDIO-TRACK Medical Treadmill
